Victron Solar Panel Kit – A great combination of 350W Solar Panels with MPPT Controller, MultiPlus & Lithium Power

A Powerful Solar Kit For Powerful Use

This Victron Solar Panel Kit merges the power of 2 x 175w quality solar panels and the Victron SmartSolar MPPT 100/30 controller to provide off-grid living.

Lithium Powered Off Grid Confidence

The Victron Multiplus 12/1600/70 Inverter/Charger will provide 230 volt power, when used in conjunction with 2 x 12.8v 100Ah Lithium Batteries, to your campervan or motorhome during off-grid adventures.

Smartphone Battery Monitoring

Keeping an eye on you battery performance is key to a healthy power system. The Victron Smart BMV-712 Battery Shunt is Smartphone compatible for ease of use and to help minimise cabling required in your campervan, motorhome or van conversion.

Complete Kit Including Fittings

All fittings, cables, mounts, fuses and holders are included in this Victron solar panel kit. Please note, the 2 Victron 175W Monocrystalline panels must be connected in series.

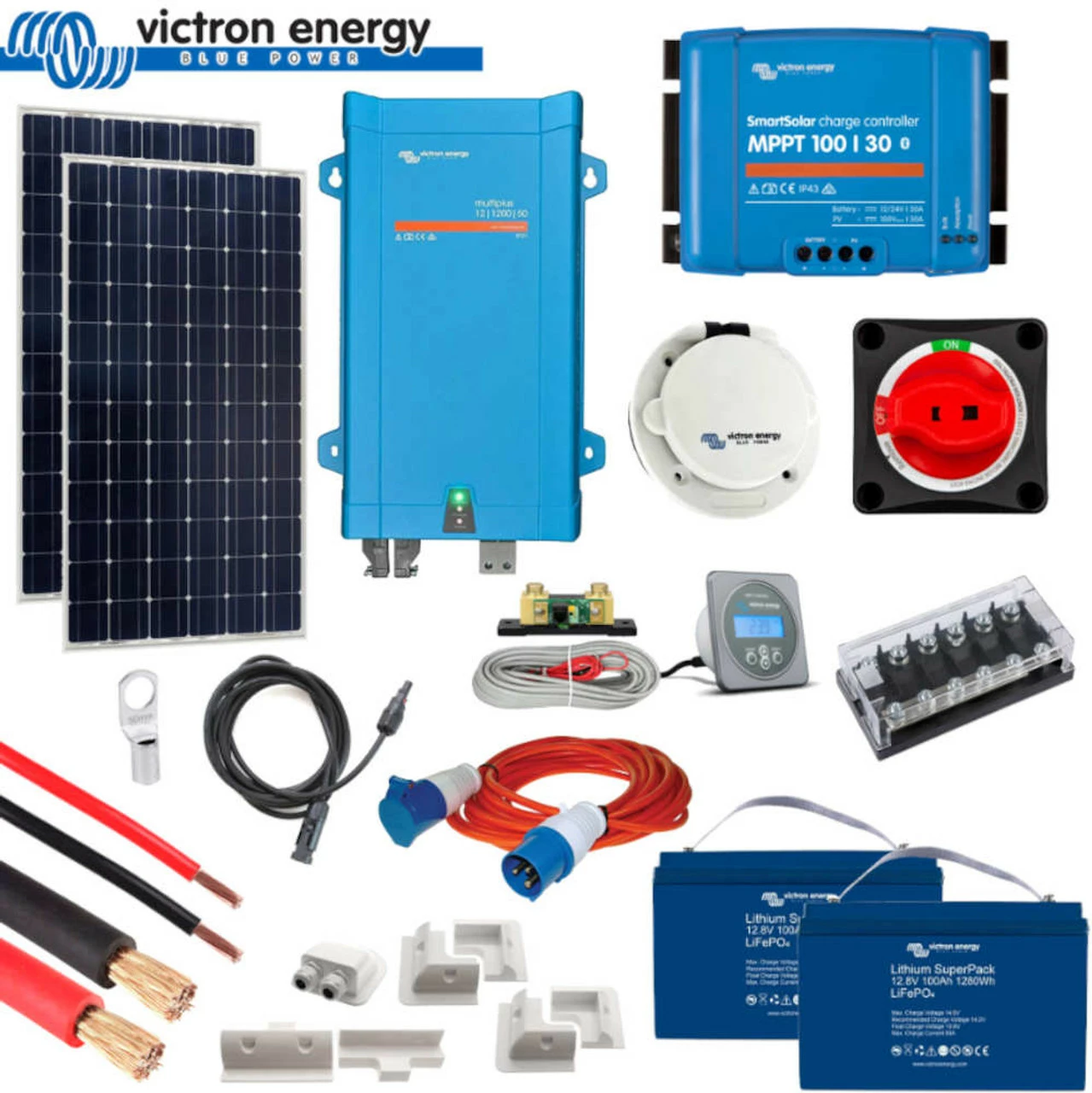

Victron Solar Panel Kit Includes

• 2 x Victron 175W Monocrystalline panels

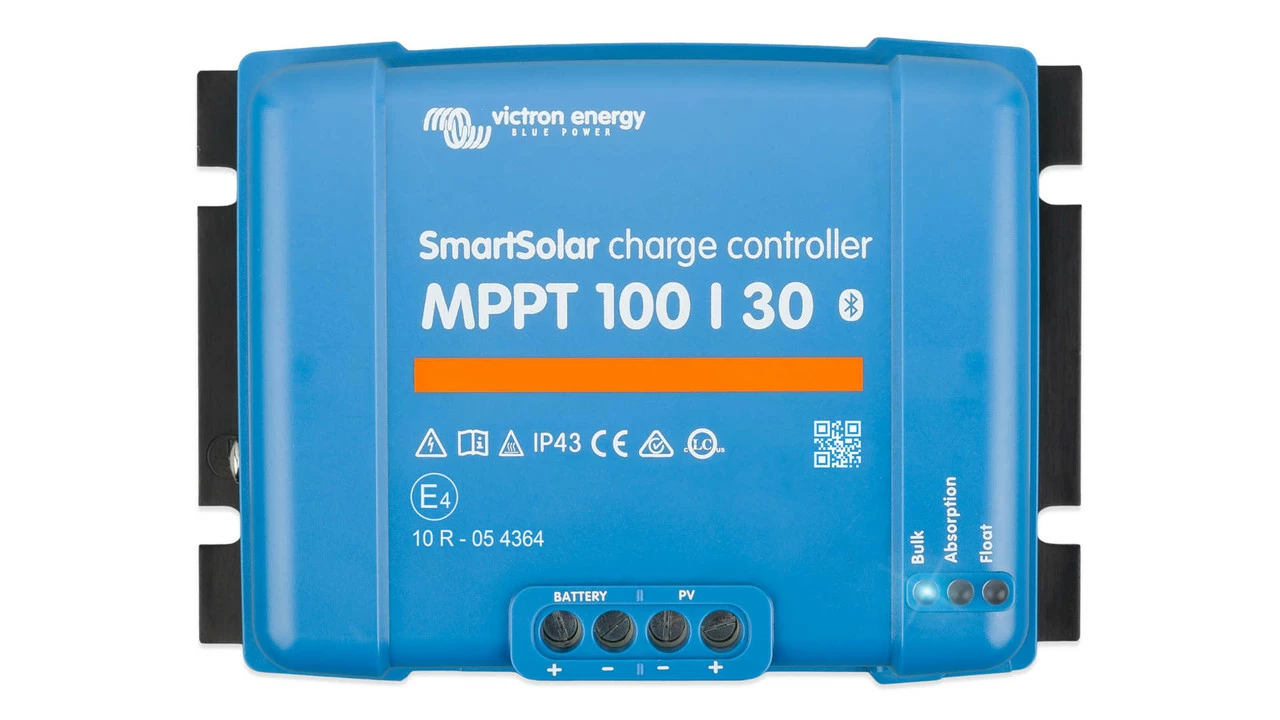

• Victron SmartSolar MPPT 100/30

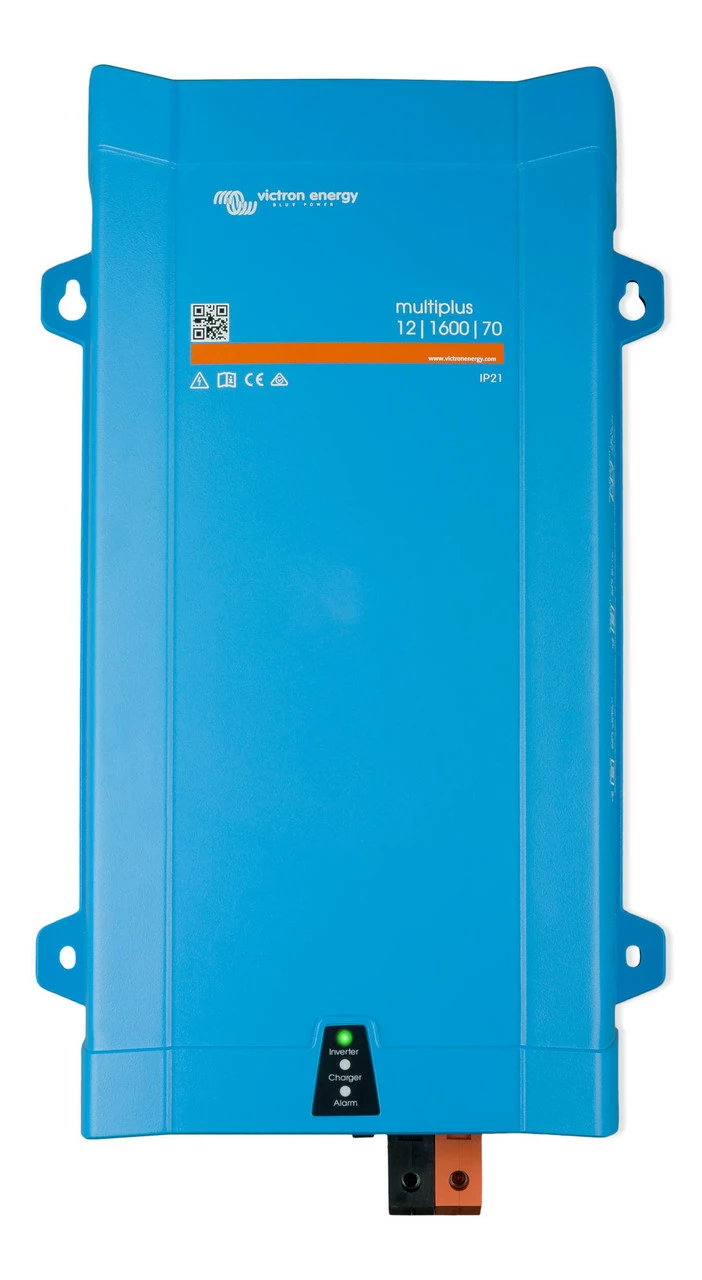

• Victron MultiPlus 12/1600/70
• Victron Smart Battery Shunt BMV-712
• Victron Battery Isolator Switch
• 2 x Victron 12.8V 100Ah Lithium Batteries
• 6 Way MEGA fuse holder with 1 x 60A 2 x 200A
• Solar Panel Mounts (8 x corner, 4 x side)
• 2 Way Gland
• Sikaflex 221 Adhesive
• Shore Cable and Plug
• Cables
• 2m x 50mm² black cable –
• 2m x 50mm² red cable –
• 2m x 9mm² black –
• 2m x 9mm² red –
• 2 x 5m 4mm Solar Cable with MC4
• Copper Lugs
• 6 x 50mm² Copper Lugs
• 2 x 6mm² Copper Lugs



Technical Specifications:

Panel Wattage:

175W

Solar Controller:

SmartSolar MPPT 100/30

Inverter/Charger:

MultiPlus 12/1600/70

Battery Type:

Lithium

DC to DC Charger:

–
