Victron Solar Panel Kit – 350W Solar Panels with MPPT Controller, MultiPlus, Orion-Tr Smart DC-DC Charger & Fittings

A Complete Kit With Alternator Charging

This Victron Solar Panel Kit combines solar energy via the MPPT 100/30 and alternator power from the Orion-Tr Smart 12/12 30A DC to DC charger providing power to your electrical system. A great combination for keeping batteries topped up in your motorhome or campervan.

Smart Charging Whilst On The Move

The Victron Orion-Tr Smart 12 30A DC-DC charger, which is smart alternator compatible, provides a charging solution for both lead acid and lithium batteries during engine running.

Inverter Power for 230V appliances

Your 230V needs are covered thanks to the Victron Multiplus 12/1200/50 combined true sine wave inverter and charger. Mains power is maintained to your caravan or motorhome, even if hook-up connection is lost.

Complete Kit Including Fittings

All fittings, cables, mounts, fuses and holders are included in this Victron solar panel kit. Please note, the 2 Victron 175W Monocrystalline panels must be connected in series.

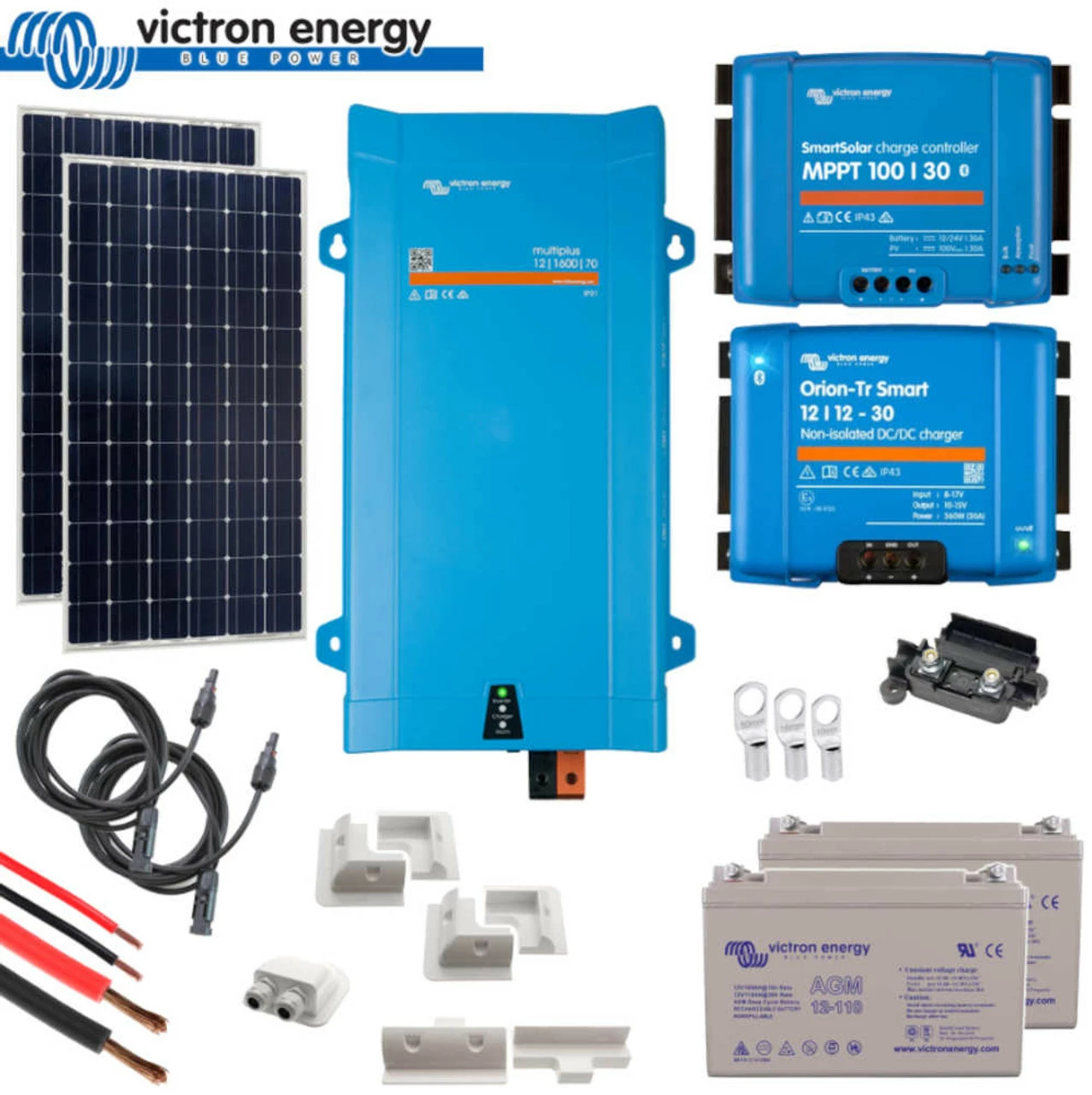

Victron Solar Panel Kit Includes

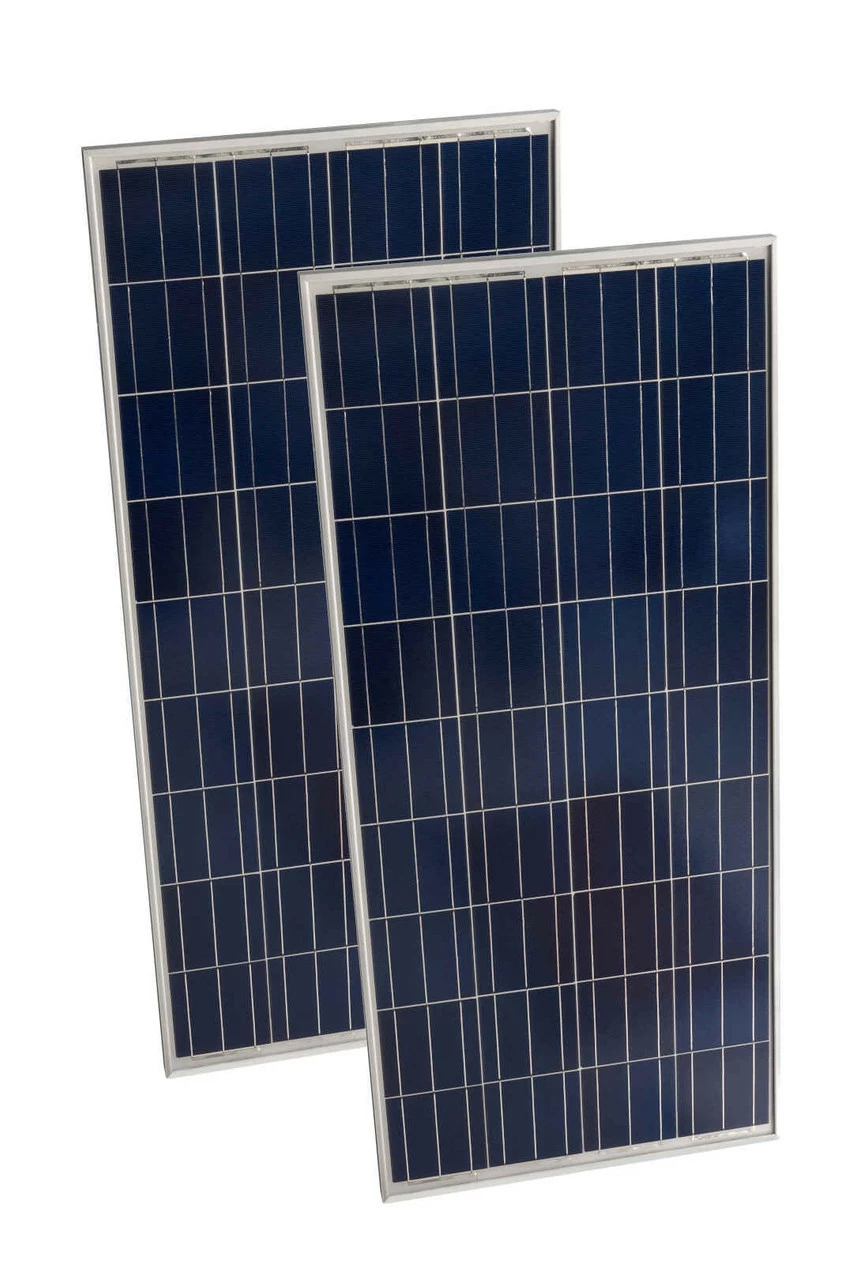

• 2 x Victron 175W Monocrystalline panels
• Victron SmartSolar MPPT 100/30
• Victron MultiPlus 12/1200/50 230V

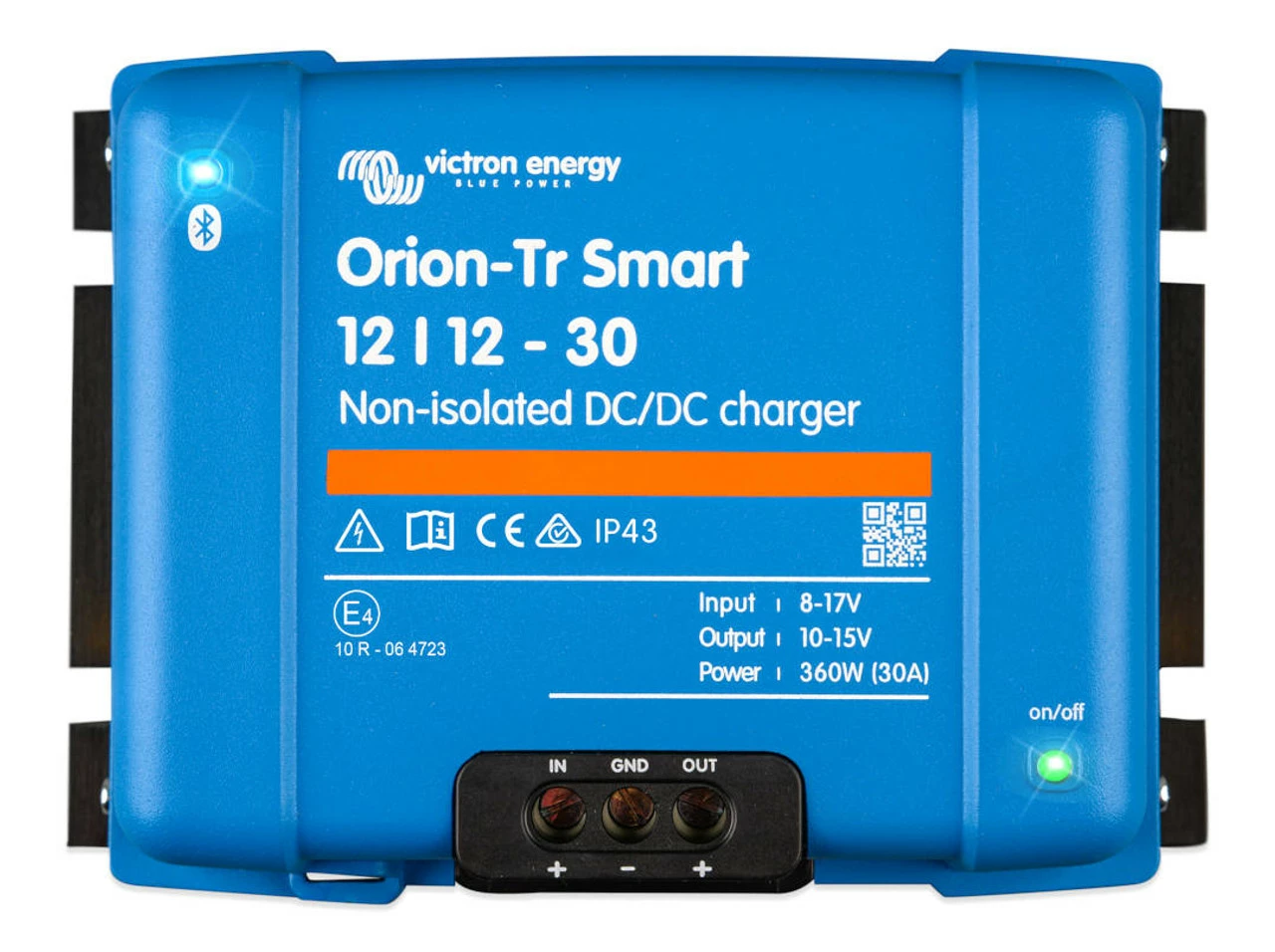

• Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger
• Battery Isolator Switch

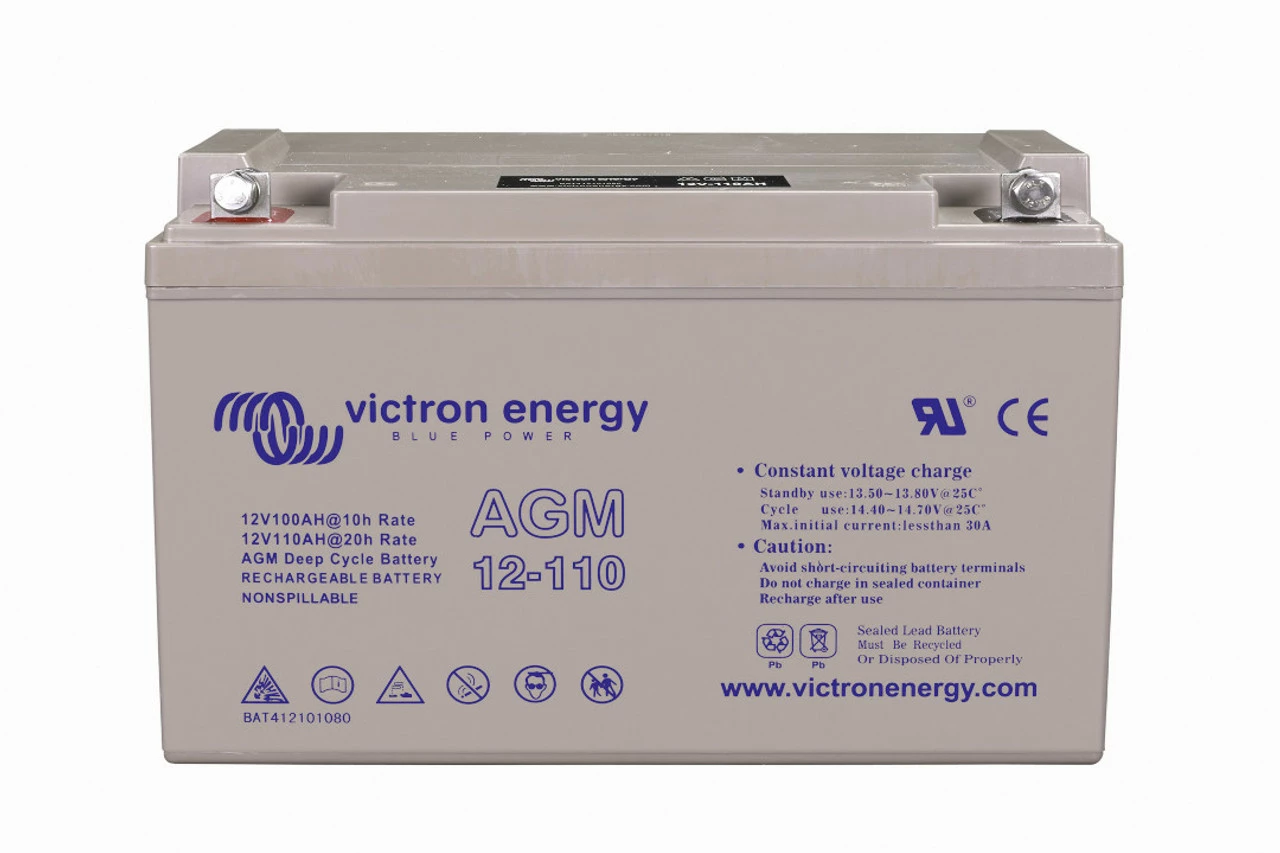

• 2 x Victron 110Ah AGM Batteries
• Midi Fuse Holder and 1 x 60A Midi fuse
• Solar Panel Mounts  (8 x corner, 4 x side)
• 2 Way Gland
• Cables
• 1350mm x 50mm² black – 1m leisure battery to multiplus, 350mm battery link
• 1350mm x 50mm² red – 1m leisure battery to multiplus, 350mm battery link
• 5m x 16mm² cable red – Orion to starter battery
• 3m x 16mm² cable black – Orion to chassis ground
• 1m x 10mm² cable red – Orion charger to leisure battery
• Lugs
• 9 x 50mm²
• 4 x 16mm²
• 1 x 10mm²

Technical Specifications:

Panel Wattage:

175W

Solar Controller:

SmartSolar MPPT 100/320

Inverter/Charger:

Multiplus 12/1600/70

Battery Type:

AGM

DC to DC Charger:

Orion-Tr Smart 12/12-30A
